DA-VINA 2534 (FOR Jaguar Land Rover Approved SAE J2534 Pass-Thru Interface)
1. Language: English,German,Russian,French,Dutch,Portuguese,Japanese, Spanish, Italian,Chinese you can choose when installation
2. This DA-VINA 2534 can support car year after 2005
3. JLR Version: V142
4.Replacement for JLR SDD VCM
5.Best Suited for Legacy, Current and Future Vehicles
1.We don't offer software or Only cracked version of 137.02 version software.
Can't update online ,if update ,will locked the machine .if want update the software ,pls contact us
2.Computer requirement: 4 nuclear WIN7 or XP 32-bit systems, More than 20GB of Hard Disk partition C.
DA-VINA 2534 Feature:
1. JLR Approved device
2. Replacement for JLR SDD VCM
3. Most cost effective Jaguar pass-thru VCI device
4. Covers CAN, ISO9141, SCP Vehicle Networks
5. 12ft USB Cable as standard included
6. Best Suited for Legacy, Current and Future Vehicles

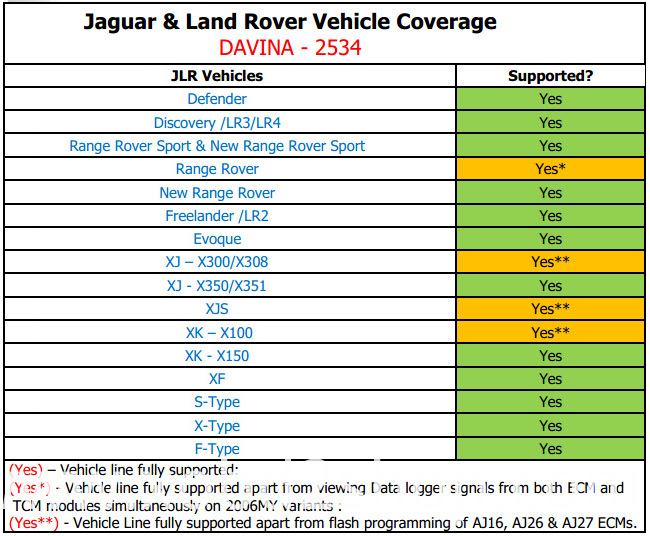

DA-VINA 2534 Vehicle Coverage:
What does the DA-VINA 2534 do?
The DA-VINA 2534 connects directly to the vehicle OBDII (Diagnostic) connector, it then connects to the laptop via a USB cable for use with SDD. Once the J2534 DLL files are loaded, this product will allow normal operation with JLR SDD Diagnostic Tool. All communication is possible on with this device.
How does the DA-VINA operate in J2534 Mode?
The DA-VINA is simple and easy to use.
1. Install the CD softweare on the Laptop.
2. Connect the J2534 device to the vehicle OBDII connector (the device powers from the vehicle).
3. Connect the 12ft USB cable to the DA-VINA and the other end to the SDD Laptop.
4. The (PWR) LED will turn solid red to show the DA-Dongle is powered.
5. During communication with the vehicle the Status (STS) LED will flash green.
1pc x DA-VINA 2534 interface
1pc x cd software
1pc x usb cable
Looking for ideal DA-VINA 2534 For Jaguar Land Rover Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Jaguar Land Rover Scanner are quality guaranteed. We are China Origin Factory of Vcm Ids For Jaguar Land Rover. If you have any question, please feel free to contact us.
Product Categories : Car Diagnostic Tools
